| Mã sản phẩm |

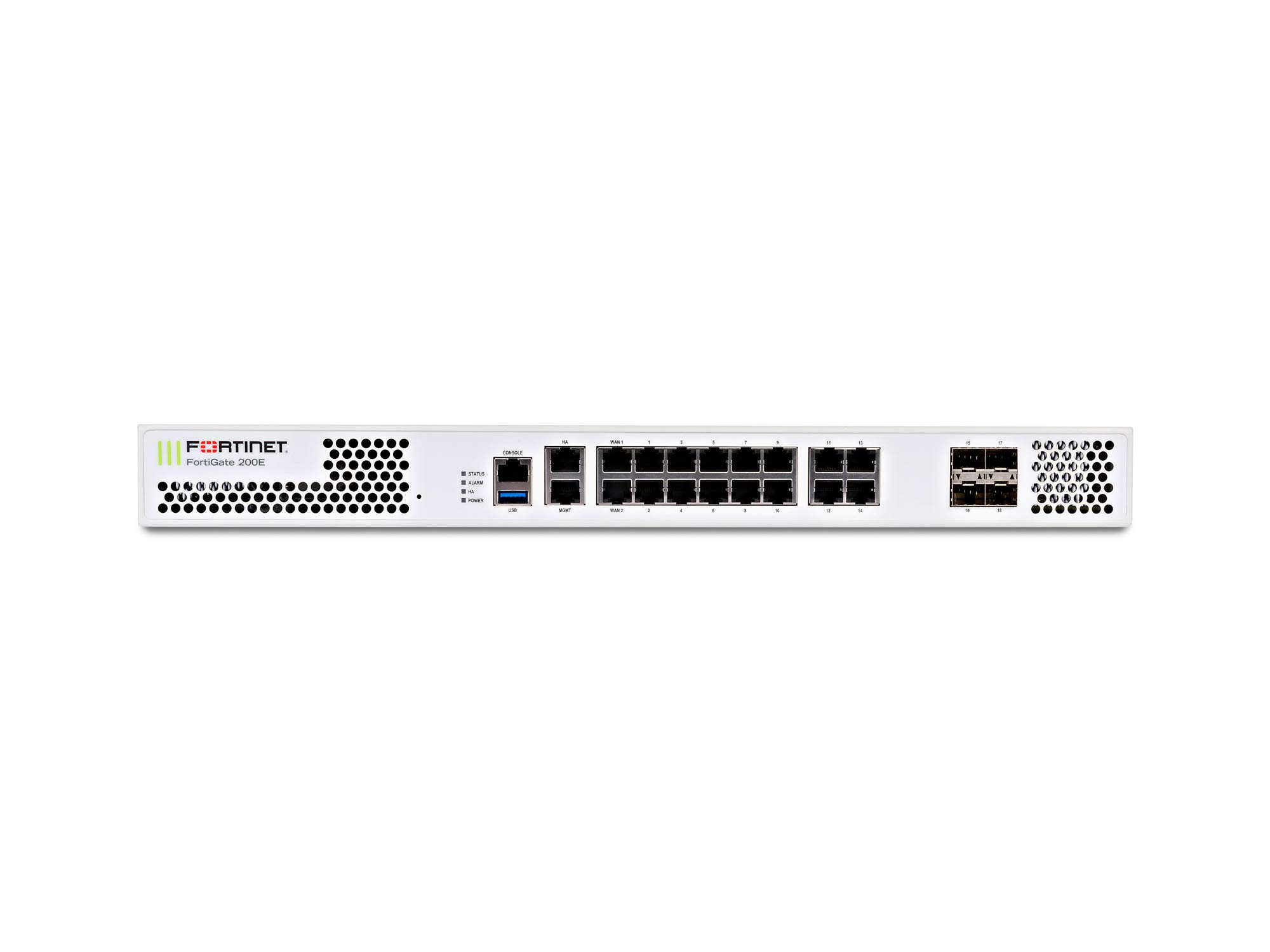

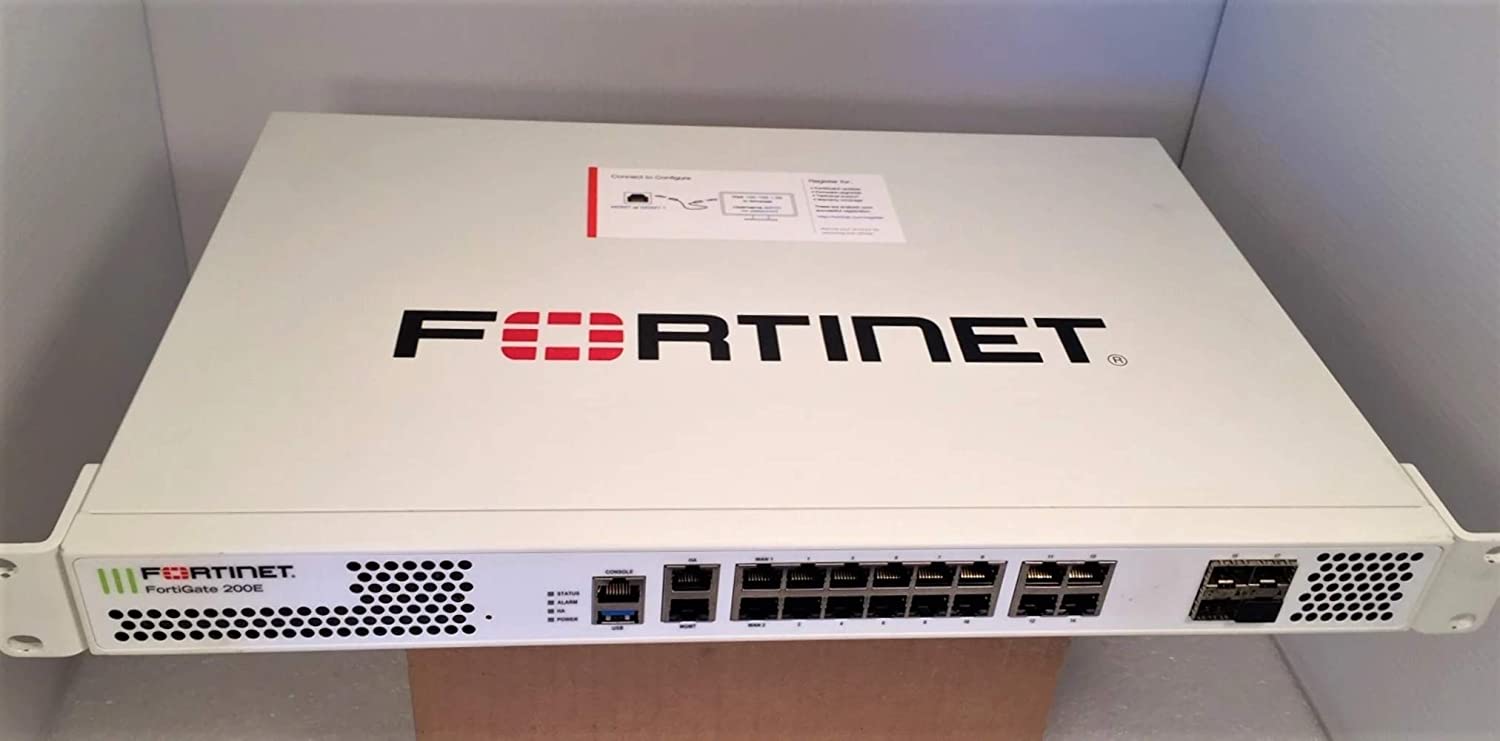

FG-201E-BDL-950-12 |
| Hardware Specifications |
|
| GE RJ45 WAN Interfaces |
2 |
| GE RJ45 Management/HA Ports |
2 |
| GE RJ45 Ports |
14 |
| GE SFP Slots |
4 |
| USB port |
1 |
| Console (RJ45) |
1 |
| Local Storage |
480 GB |
| Included Transceivers |
0 |
| System Performance |
|
| Firewall Throughput (1518 / 512 / 64 byte UDP packets) |
20 / 20 / 9 Gbps |
| Firewall Latency (64 byte UDP packets) |
3 μs |
| Firewall Throughput (Packets Per Second) |
13.5 Mpps |
| Concurrent Sessions (TCP) |
2 Million |
| New Sessions/Second (TCP) |
135,000 |
| Firewall Policies |
10,000 |
| IPsec VPN Throughput (512 byte) 1 |
9 Gbps |
| Gateway-to-Gateway IPsec VPN Tunnels |
2,000 |
| Client-to-Gateway IPsec VPN Tunnels |
10,000 |
| SSL-VPN Throughput |
900 Mbps |
| Concurrent SSL-VPN Users (Recommended Maximum, Tunnel Mode) |
300 |
| SSL Inspection Throughput (IPS, HTTP) 3 |
1 Gbps |
| Application Control Throughput (HTTP 64K) 2 |
3.5 Gbps |
| CAPWAP Throughput (1444 byte, UDP) |
1.5 Gbps |
| Virtual Domains (Default / Maximum) |
10 / 10 |
| Maximum Number of Switches Supported |
24 |
| Maximum Number of FortiAPs (Total / Tunnel Mode) |
128 / 64 |
| Maximum Number of FortiTokens |
1,000 |
| Maximum Number of Registered FortiClients |
600 |
| High Availability Configurations |
Active / Active, Active / Passive, Clustering |
| System Performance — Optimal Traffic Mix |
|
| IPS Throughput 2 |
6 Gbps |
| System Performance — Enterprise Traffic Mix |
|
| IPS Throughput 2 |
2.2 Gbps |
| NGFW Throughput 2, 4 |
1.8 Gbps |
| Threat Protection Throughput 2, 5 |
1.2 Gbps |
| Dimensions |
|
| Height x Width x Length (inches) |
1.75 x 17.0 x 11.9 |
| Height x Width x Length (mm) |
44.45 x 432 x 301 |
| Weight |
12.12 lbs (5.5 kg) |
| Form Factor |
Rack Mount, 1 RU |
| Environment |
|
| Power |
100–240V AC, 50–60 Hz |
| Maximum Current |
110 V / 3 A, 220 V / 0.42 A |
| Power Consumption (Average / Maximum) |
70.98 / 109.9 W |
| Heat Dissipation |
374.9 BTU/h |
| Operating Temperature |
32–104°F (0–40°C) |
| Storage Temperature |
-31–158°F (-35–70°C) |
| Humidity |
10–90% non-condensing |
| Noise Level |
31.1 dBA |
| Operating Altitude |
Up to 7,400 ft (2,250 m) |
| Compliance |
FCC Part 15B, Class A, CE, RCM, VCCI, UL/cUL, CB, BSMI |
| Certifications |
ICSA Labs: Firewall, IPsec, IPS, Antivirus, SSL-VPN; IPv6 |
