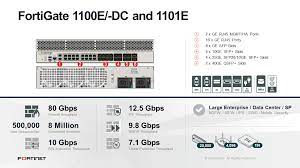

Thiết Bị Tường Lửa Firewall FortiGate FG-1100E-BDL-950-DD

Hardware: 2x 40 GE QSFP+ slots, 4x 25 GE SFP28 slots, 4x 10 GE SFP+ slots, 8x GE SFP slots, 18x GE RJ45 ports (including 16x ports, 2x management/HA ports) SPU NP6 and CP9 hardware accelerated, and 2 AC power supplies;
1 Year Hardware plus 24x7 FortiCare and FortiGuard Unified Threat Protection (UTP) (IPS, Advanced Malware Protection, Application Control, Web & Video Filtering, Antispam Service).

Giá Liên Hệ

mua ngay

Thông tin chi tiết
Đánh giá

Mã sản phẩm	FG-1100E-BDL-950-12
Interfaces and Modules
Hardware Accelerated 40 GE QSFP+ Slots	2
Hardware Accelerated 25 GE SFP28 / 10 GE SFP+ Slots	4
Hardware Accelerated 10 GE SFP+ Slots	4
Hardware Accelerated GE SFP Slots	8
Hardware Accelerated GE RJ45 Ports	16
GE RJ45 Management / HA Ports	2
USB Ports (Client / Server)	1/2
Console Port	1
Onboard Storage	0
Included Transceivers	2x SFP (SX 1 GE)
System Performance — Enterprise Traffic Mix
IPS Throughput 2	12.5 Gbps
NGFW Throughput 2, 4	9.8 Gbps
Threat Protection Throughput 2, 5	7.1 Gbps
System Performance and Capacity
IPv4 Firewall Throughput (1518 / 512 / 64 byte, UDP)	80 / 80 / 45 Gbps
IPv6 Firewall Throughput (1518 / 512 / 86 byte, UDP)	80 / 80 / 45 Gbps
Firewall Latency (64 byte, UDP)	3 μs
Firewall Throughput (Packet per Second)	67.5 Mpps
Concurrent Sessions (TCP)	8 Million
New Sessions/Second (TCP)	500,000
Firewall Policies	100,000
IPsec VPN Throughput (512 byte)	48 Gbps
Gateway-to-Gateway IPsec VPN Tunnels	20,000
Client-to-Gateway IPsec VPN Tunnels	100,000
SSL-VPN Throughput	8.4 Gbps
Concurrent SSL-VPN Users (Recommended Maximum)	10,000
SSL Inspection Throughput (IPS, avg. HTTPS)3	10.0 Gbps
SSL Inspection CPS (IPS, avg. HTTPS) 3	6,500
SSL Inspection Concurrent Session (IPS, avg. HTTPS) 3	780,000
Application Control Throughput (HTTP 64K) 2	26 Gbps
CAPWAP Throughput (1444 byte, UDP)	43 Gbps
Virtual Domains (Default / Maximum)	10/250
Maximum Number of FortiSwitches Supported	128
Maximum Number of FortiAPs (Total / Tunnel)	4,096 / 2,048
Maximum Number of FortiTokens	20,000
Maximum Number of Registered Endpoints	20,000
High Availability Configurations	Active-Active, Active-Passive, Clustering
Dimensions and Power
Height x Width x Length (inches)	3.5 x 17.44 x 17.62
Height x Width x Length (mm)	88.9 x 443 x 447.4
Weight	24.9 lbs (11.3 kg)
Form Factor	Rack Mount, 2 RU
AC Power Supply	100–240V AC, 50–60 Hz
Power Consumption (Average / Maximum)	217 W / 336 W
Current (Maximum)	6A@120V, 3A@240V
Heat Dissipation	1147 BTU/h
Redundant Power Supplies	Yes (Hot Swappable)
Operating Environment and Certifications
Operating Temperature	32–104°F (0–40°C)
Storage Temperature	-31–158°F (-35–70°C)
Humidity	10–90% non-condensing
Noise Level	66.7 dBA
Operating Altitude	Up to 7,400 ft (2,250 m)
Compliance	FCC Part 15 Class A, C-Tick, VCCI, CE, UL/cUL, CB
Certifications	ICSA Labs: Firewall, IPsec, IPS, Antivirus, SSL-VPN;USGv6/IPv6

Tùy chọn Module quang SFP cho Firewall FortiGate 1100E

1 GE SFP LX Transceiver Module	FN-TRAN-LX	1 GE SFP LX transceiver module for all systems with SFP and SFP/SFP+ slots.
1 GE SFP RJ45 Transceiver Module	FN-TRAN-GC	1 GE SFP RJ45 transceiver module for all systems with SFP and SFP/SFP+slots.
1 GE SFP SX Transceiver Module	FN-TRAN-SX	1 GE SFP SX transceiver module for all systems with SFP and SFP/SFP+ slots.
10 GE SFP+ Transceiver Module, Short Range	FN-TRAN-SFP+SR	10 GE SFP+ transceiver module, short range for all systems with SFP+ and SFP/SFP+ slots.
10 GE SFP+ Transceiver Module, Long Range	FN-TRAN-SFP+LR	10 GE SFP+ transceiver module, long range for all systems with SFP+ and SFP/SFP+ slots.
10 GE SFP+ Active Direct Attach Cable, 10m / 32.8 ft	SP-CABLE-ADASFP+	10 GE SFP+ active direct attach cable, 10m / 32.8 ft for all systems with SFP+ and SFP/SFP+ slots.
25 GE SFP28 Transceiver Module, Long Range	FG-TRAN-SFP28-LR	25 GE SFP28 transceiver module, long range for all systems with SFP28 slots.
25 GE/10 GE Dual Rate SFP28 Transceiver Module, Short Range	FN-TRAN-SFP28-SR	25 GE/10 GE dual rate SFP28 transceiver module, short range for all systems with SFP28/SFP+ slots.
40 GE QSFP+ Transceivers, Short Range	FN-TRAN-QSFP+SR	40 GE QSFP+ transceivers, short range for all systems with QSFP+ slots.
40 GE QSFP+ Transceivers, Short Range, BiDi	FG-TRAN-QSFP+SR-BIDI	40 GE QSFP+ transceivers, short range BiDi for systems with QSFP+ slots.
40 GE QSFP+ Transceivers, Long Range	FN-TRAN-QSFP+LR	40 GE QSFP+ transceivers, long range for all systems with QSFP+ slots.
40 GE QSFP+ to 4x 10GE SFP+ Optical Breakout	FG-TRAN-QSFP+4XSFP	40GE QSFP+ Parallel Breakout Active Optical Cable with 1m length for all systems with QSFP+ slots.
QSFP+ to 4xSFP+ Optical breakout 5m	FG-TRAN-QSFP+4SFP-5	40G QSFP+ Parallel Breakout MPO to 4xLC connectors, 5m reach, transceivers not included.

Tùy chọn Rack Mount cho Firewall FortiGate 1100E

Rack Mount Sliding Rails

SP-FG3040B-RAIL

Rack mount sliding rails for FG-1000C/-DC, FG-1100/1101E, FG-1200D, FG-1500D/-DC, FG-2000E, FG-2500E, FG-3040B/-DC, FG-3140B/-DC, FG-3240C/-DC, FG-3000D/-DC, FG-3100D/-DC, FG-3200D/-DC, FG-3400/3401E, FG-3600/3601E, FG-3700D/-DC, FG-3700DX, FG-3810D/-DC and FG-3950B/-DC.

Tùy chọn Power nguồn cho Firewall FortiGate 1100E

AC Power Supply

SP-FG300E-PS

AC power supply for FG-300/301E, FG-400/401E, FG-500/501E, FG-600/601E, FG-1100/1101E,
FAZ-200F/FAZ-300F/FMG-200F and FAZ-800F/FMG-300F
