  •  22 x GE RJ45 ports (including 2 x WAN ports, 1 x DMZ port, 1 x Mgmt port, 2 x HA ports, 16 x switch ports with 4 SFP port shared media).
  •  4 SFP ports, 2x 10G SFP+ FortiLinks, dual power supplies redundancy.
  •  Max managed FortiAPs (Total / Tunnel) 128 / 64.
  •  VPN support.
  • -Hardware plus 24x7 FortiCare and FortiGuard Unified (UTM).

Giá Liên Hệ







  • Thông tin chi tiết
  • Đánh giá

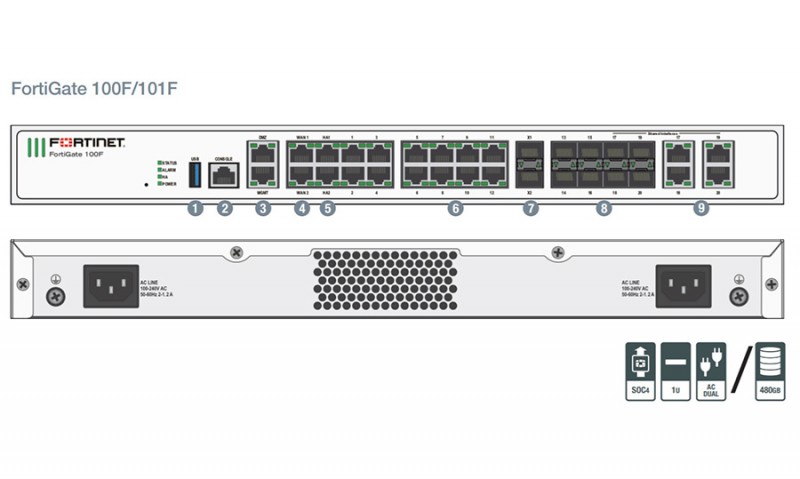

Thiết bị tường lửa Firewall Fortinet FortiGate-100F (FG-100F-BDL-950-12)

Mã sản phẩm FG-100F-BDL-950-12
Hardware Specifications
GE RJ45 Ports  12
GE RJ45 Management/HA /DMZ Ports  1 / 2 / 1
GE SFP Slots  4
10 GE SFP+ Slots 2
GE RJ45 WAN Ports 2
GE RJ45 or SFP Shared Ports  4
USB Port   1
Console Port   1
Internal Storage  -
Included Transceivers 0
System Performance — Enterprise Traffic Mix
IPS Throughput 2 2.6 Gbps
NGFW Throughput 2, 4 1.6 Gbps
Threat Protection Throughput 2, 5 1 Gbps
System Performance
Firewall Throughput (1518 / 512 / 64 byte UDP packets)  20 / 18 / 10 Gbps
Firewall Latency (64 byte UDP packets)  5 μs
Firewall Throughput (Packets Per Second)  15 Mpps
Concurrent Sessions (TCP)  1.5 Million
New Sessions/Second (TCP)  56,000
Firewall Policies  10,000
IPsec VPN Throughput (512 byte) 1 11.5 Gbps
Gateway-to-Gateway IPsec VPN Tunnels   2,500
Client-to-Gateway IPsec VPN Tunnels  16,000
SSL-VPN Throughput 750 Mbps
Concurrent SSL-VPN Users (Recommended Maximum, Tunnel Mode) 500
SSL Inspection Throughput (IPS, avg. HTTPS) 3 1 Gbps
SSL Inspection CPS (IPS, avg. HTTPS) 3 1,800
SSL Inspection Concurrent Session (IPS, avg. HTTPS) 3 135,000
Application Control Throughput (HTTP 64K) 2 2.2 Gbps
CAPWAP Throughput (1444 byte, UDP)  15 Gbps
Virtual Domains (Default / Maximum)  10 / 10
Maximum Number of Switches Supported 24
Maximum Number of FortiAPs (Total / Tunnel Mode)  128 / 64
Maximum Number of FortiTokens 5,000
Maximum Number of Registered FortiClients 600
High Availability Configurations  Active / Active, Active / Passive, Clustering
Dimensions
Height x Width x Length (inches)  1.73 x 17 x 10
Height x Width x Length (mm) 44 x 432 x 254
Form Factor   Rack Mount, 1 RU
Weight  7.25 lbs (3.29 kg)
Environment
Power Required  100–240V AC, 60–50 Hz
Maximum Current  100V / 1A, 240V / 0.5A
Power Consumption (Average / Maximum) 35.1 W / 38.7 W
Heat Dissipation  119.77 BTU/h
Operating Temperature 32–104°F (0–40°C)
Storage Temperature  -31–158°F (-35–70°C)
Operating Altitude  Up to 7,400 ft (2,250 m)
Humidity  10–90% non-condensing
Noise Level  40.4 dBA
Compliance  FCC Part 15B, Class A, CE, RCM, VCCI, UL/cUL, CB, BSMI
Certifications  ICSA Labs: Firewall, IPsec, IPS, Antivirus, SSL-VPN; IPv6

Tùy chọn Module quang SFP cho Firewall FortiGate 100F

1 GE SFP LX transceiver module FN TRAN LX 1 GE SFP LX transceiver module for all systems with SFP and SFP/SFP+ slots.
1 GE SFP RJ45 transceiver module FN TRAN GC 1 GE SFP RJ45 transceiver module for all systems with SFP and SFP/SFP+slots.
1 GE SFP SX transceiver module FN TRAN SX 1 GE SFP SX transceiver module for all systems with SFP and SFP/SFP+ slots.
10 GE SFP+ transceiver module, short range FN TRAN SFP SR 10 GE SFP+ transceiver module, short range for all systems with SFP+ and SFP/SFP+ slots.
