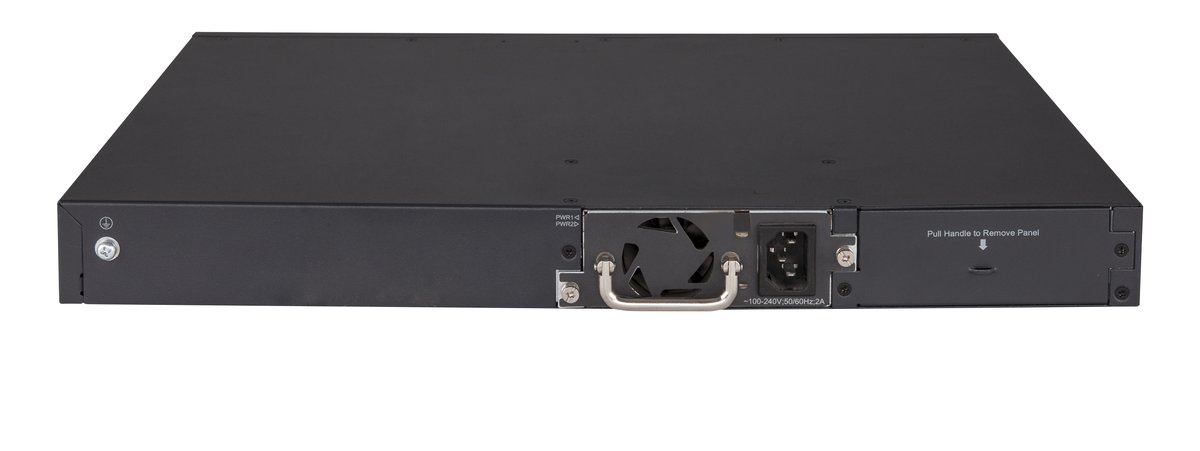

Switch HPE 5130 24G SFP 4SFP+ EI (JG933A)

• 24 RJ-45 autosensing 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX)
• Duplex: half or full
• 2 SFP dual-personality 1000 Mbps ports (IEEE 802.3ab Type 1000BASE-T)
• 1 RJ-45 serial console port
• Supports a maximum of 24 autosensing 10/100 ports plus 2 1000BASE-X SFP ports, with optional module

mua ngay

Thông tin chi tiết
Đánh giá

Operating humidity range

10 to 90% (noncondensing)

Input voltage

100 - 240 VAC, rated; -48 to -60 VDC, rated (depending on power supply chosen)

Ports

(16) SFP 100/1000 Mbps ports; (8) SFP dual-personality ports - 10/100/1000BASE-T RJ-45 or 100/1000BASE-X Combo Ports; (4) SFP+ fixed 1000/10000 SFP+ ports

Latency

1000 Mb Latency: < 5 µs; 10 Gbps Latency: < 3 µs

Memory and processor

1 GB SDRAM; Packet buffer size: 1.5 MB; 512 MB flash

Management features

IMC - Intelligent Management Center; Command-line interface; Web browser; SNMP manager

Throughput

up to 96 Mpps

Operating temperature range

-5 to 45°C

Stacking capabilities

IRF; 9 switches
